Terraform Deploy AWS ECS

9 min read

Setup requirements

Install terraform

brew install terraform

Infrastructure as Code with Terraform

Create an ECR repository on AWS → create an ECS cluster → run a container service on Fargate → push the Docker image → obtain a public IP and access the service.

Understanding Infrastructure as Code (IaC)

  • Problem: Manual clicking is error-prone and not repeatable
  • Solution: Define infrastructure in code files
  • Benefits: Version control, peer review, automated deployments
  • Terraform: Most popular IaC tool, works with multiple cloud providers

Step 1: Prepare Terraform Files

  1. Create a new directory for Terraform:

    mkdir terraform-ecs
cd terraform-ecs

  2. Create the following files:
    variables.tf - Defines input variables for parameterizing the configuration:

variable "aws_region" {
  description = "AWS region for resources"
  type        = string
  default     = "us-east-1"
}

variable "service_name" {
  description = "Name of the ECS service"
  type        = string
  default     = "hello-service"
}

variable "ecr_repository_name" {
  description = "Name of the ECR repository"
  type        = string
  default     = "hello-service"
}

variable "desired_count" {
  description = "Number of tasks to run"
  type        = number
  default     = 1
}

variable "container_port" {
  description = "Port the container listens on"
  type        = number
  default     = 8080
}

main.tf - Main configuration with providers and data sources:

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
  required_version = ">= 1.0"
}

provider "aws" {
  region = var.aws_region
}

# Data source to get default VPC
data "aws_vpc" "default" {
  default = true
}

# Data source to get default subnets
data "aws_subnets" "default" {
  filter {
    name   = "vpc-id"
    values = [data.aws_vpc.default.id]
  }
}

ecr.tf - ECR repository resource configuration:

# Create ECR repository
resource "aws_ecr_repository" "app_repo" {
  name                 = var.ecr_repository_name
  image_tag_mutability = "MUTABLE"

  image_scanning_configuration {
    scan_on_push = false
  }

  tags = {
    Name        = var.ecr_repository_name
    Environment = "dev"
  }
}

# Output the repository URL
output "ecr_repository_url" {
  value = aws_ecr_repository.app_repo.repository_url
}

ecs.tf - ECS resources including cluster, task definition, and service:

# ECS Cluster
resource "aws_ecs_cluster" "main" {
  name = "${var.service_name}-cluster"

  tags = {
    Name        = "${var.service_name}-cluster"
    Environment = "dev"
  }
}

# Task Execution Role (using LabRole)
data "aws_iam_role" "lab_role" {
  name = "LabRole"
}

# ECS Task Definition
resource "aws_ecs_task_definition" "app" {
  family                   = "${var.service_name}-task"
  network_mode             = "awsvpc"
  requires_compatibilities = ["FARGATE"]
  cpu                      = "256"
  memory                   = "512"
  execution_role_arn       = data.aws_iam_role.lab_role.arn
  task_role_arn            = data.aws_iam_role.lab_role.arn

  container_definitions = jsonencode([
    {
      name  = "${var.service_name}-container"
      image = "${aws_ecr_repository.app_repo.repository_url}:latest"

      portMappings = [
        {
          containerPort = var.container_port
          protocol      = "tcp"
        }
      ]

      logConfiguration = {
        logDriver = "awslogs"
        options = {
          "awslogs-group"         = aws_cloudwatch_log_group.ecs_logs.name
          "awslogs-region"        = var.aws_region
          "awslogs-stream-prefix" = "ecs"
        }
      }
    }
  ])

  tags = {
    Name        = "${var.service_name}-task"
    Environment = "dev"
  }
}

# CloudWatch Log Group
resource "aws_cloudwatch_log_group" "ecs_logs" {
  name              = "/ecs/${var.service_name}"
  retention_in_days = 7

  tags = {
    Name        = "${var.service_name}-logs"
    Environment = "dev"
  }
}

# Security Group (with -tf- to avoid conflicts with manual creation)
resource "aws_security_group" "ecs_service" {
  name        = "${var.service_name}-tf-sg"
  description = "Security group for ${var.service_name} ECS service"
  vpc_id      = data.aws_vpc.default.id

  ingress {
    from_port   = var.container_port
    to_port     = var.container_port
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    description = "Allow inbound traffic on container port"
  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
    description = "Allow all outbound traffic"
  }

  tags = {
    Name        = "${var.service_name}-tf-sg"
    Environment = "dev"
  }
}

# ECS Service
resource "aws_ecs_service" "app" {
  name            = var.service_name
  cluster         = aws_ecs_cluster.main.id
  task_definition = aws_ecs_task_definition.app.arn
  desired_count   = var.desired_count

  capacity_provider_strategy {
    capacity_provider = "FARGATE_SPOT"
    weight            = 100
    base              = 0
  }

  capacity_provider_strategy {
    capacity_provider = "FARGATE"
    weight            = 0
    base              = 0
  }

  network_configuration {
    subnets          = data.aws_subnets.default.ids
    security_groups  = [aws_security_group.ecs_service.id]
    assign_public_ip = true
  }

  tags = {
    Name        = var.service_name
    Environment = "dev"
  }
}

outputs.tf - Output values for easy access to created resources:

output "cluster_name" {
  description = "Name of the ECS cluster"
  value       = aws_ecs_cluster.main.name
}

output "service_name" {
  description = "Name of the ECS service"
  value       = aws_ecs_service.app.name
}

output "get_public_ip_command" {
  description = "Command to get the public IP of the running task"
  value       = <<-EOT
    aws ecs list-tasks --cluster ${aws_ecs_cluster.main.name} --service-name ${aws_ecs_service.app.name} --query 'taskArns[0]' --output text | \
    xargs -I {} aws ecs describe-tasks --cluster ${aws_ecs_cluster.main.name} --tasks {} --query 'tasks[0].attachments[0].details[?name==`networkInterfaceId`].value' --output text | \
    xargs -I {} aws ec2 describe-network-interfaces --network-interface-ids {} --query 'NetworkInterfaces[0].PublicIp' --output text
  EOT
}

terraform.tfvars - Variable values to customize the deployment:

aws_region          = "us-east-1"
service_name        = "hello-service"
ecr_repository_name = "hello-service-terraform"  # Different name to avoid conflicts
desired_count       = 1
container_port      = 8080

Step 2: Initialize and Plan

Note: Make sure you are in the terraform-ecs folder when running terraform commands!

  1. Initialize Terraform:
cd terraform-ecs
terraform init

This downloads the AWS provider and prepares your working directory.

  1. Validate configuration:
terraform validate

Should return “Success! The configuration is valid.”

  1. Preview changes:
terraform plan

This shows what Terraform will create without actually creating it.

Step 3: Apply Terraform Configuration

  1. Ensure your Docker image is ready:

    • If creating a new ECR repo, you’ll need to push your image after Terraform creates it
    • Note the ECR URL from the plan output

  2. Apply the configuration:

    terraform apply
    • Review the planned changes
    • Type yes when prompted
    • Wait for resources to be created (2-3 minutes)

  3. Push Docker image to new ECR:

    # Get the new ECR URL from Terraform output
NEW_ECR_URL=$(terraform output -raw ecr_repository_url)
echo "New ECR URL: $NEW_ECR_URL"

# Extract base URL for login
ECR_BASE=$(echo $NEW_ECR_URL | cut -d'/' -f1)

# Login to ECR
aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin $ECR_BASE

# Tag and push
docker tag hello-service:latest ${NEW_ECR_URL}:latest
docker push ${NEW_ECR_URL}:latest

  4. Update ECS Service (force new deployment):

    aws ecs update-service --cluster hello-service-cluster --service hello-service --force-new-deployment

Step 4: Get Public IP and Test

  1. Get the public IP (zsh/bash compatible):

    # Get cluster and service names from Terraform
CLUSTER=$(terraform output -raw cluster_name)
SERVICE=$(terraform output -raw service_name)

# Get task ARN
TASK_ARN=$(aws ecs list-tasks \
  --cluster $CLUSTER \
  --service-name $SERVICE \
  --query 'taskArns[0]' \
  --output text)

# Get ENI ID
ENI_ID=$(aws ecs describe-tasks \
  --cluster $CLUSTER \
  --tasks $TASK_ARN \
  --query 'tasks[0].attachments[0].details[?name==`networkInterfaceId`].value' \
  --output text)

# Get Public IP (with fallback)
PUBLIC_IP=$(aws ec2 describe-network-interfaces \
  --network-interface-ids $ENI_ID \
  --query 'NetworkInterfaces[0].Association.PublicIp' \
  --output text)

if [[ -z "$PUBLIC_IP" ]] || [[ "$PUBLIC_IP" == "None" ]]; then
  PUBLIC_IP=$(aws ec2 describe-network-interfaces \
    --network-interface-ids $ENI_ID \
    --query 'NetworkInterfaces[0].PublicIp' \
    --output text)
fi

echo "Public IP: $PUBLIC_IP"

  2. Test your service:

    # Basic test
curl http://$PUBLIC_IP:8080/api/hello

# Test with your name
curl http://$PUBLIC_IP:8080/api/hello/YourName

Understanding Terraform State

  • State File: terraform.tfstate tracks your infrastructure
  • Important: Don’t delete this file or you’ll lose track of resources
  • Best Practice: In production, store state in S3 with state locking

Screenshot Requirements

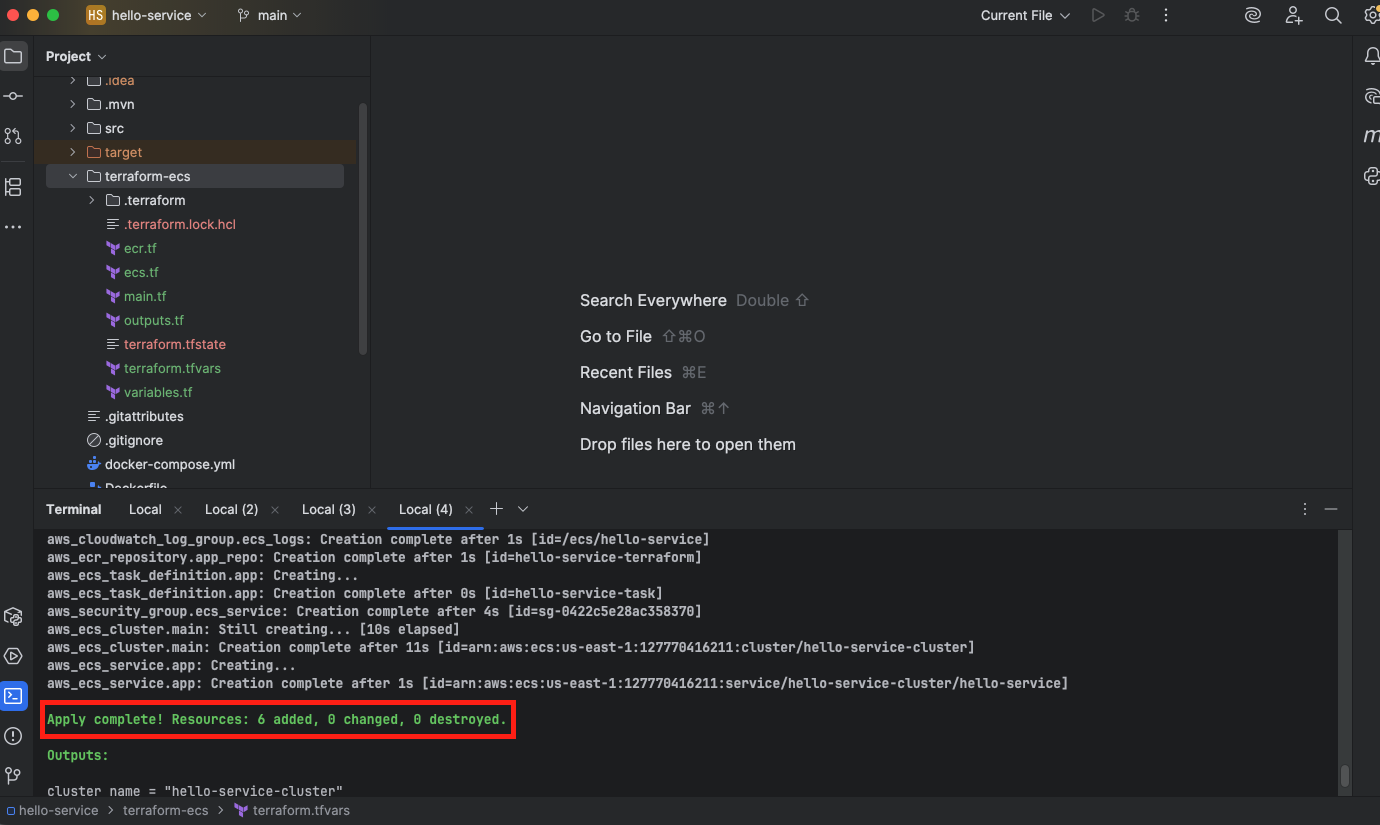

  1. Successful terraform apply completion (showing “Apply complete!“)

    • Note: If you need to regenerate this output, you can safely run terraform apply again - it will show “Apply complete!” with “0 to add, 0 to change, 0 to destroy” if everything is already created

  2. The curl command with YOUR NAME and its successful response from the Terraform-deployed service

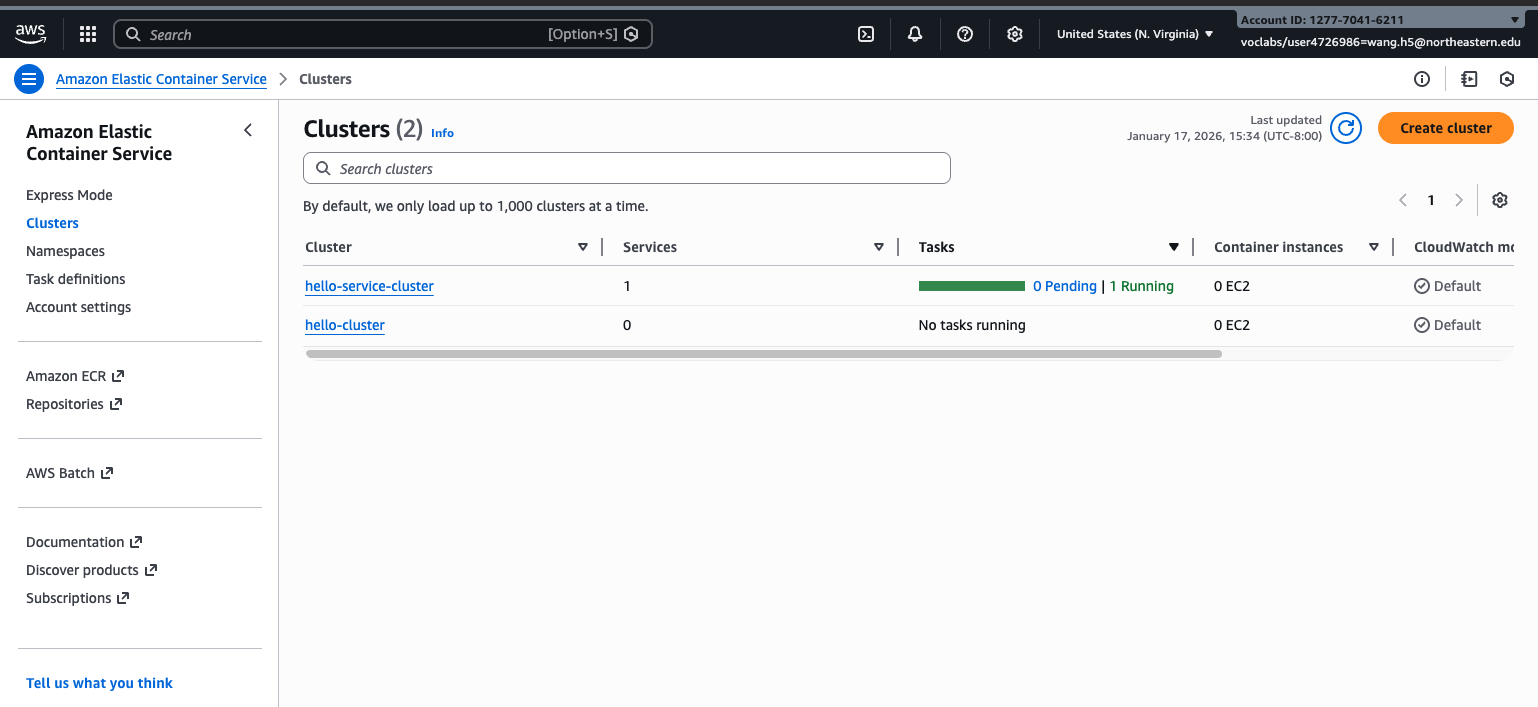

  1. The ECS console window with the deployed task in the Running State

    Submit to Canvas before the deadline.

Troubleshooting Guide

Common AWS CLI Issues

IssueSolution
”Unable to locate credentials”Run aws configure with Learner Lab credentials
”Token has expired”Refresh Learner Lab session and reconfigure AWS CLI
”Access Denied”Ensure you’re using LabRole, not creating new IAM resources

ECR Push Problems

IssueSolution
”no basic auth credentials”Make sure lab is running, re-run the AWS configure steps with correct credentials
”repository does not exist”Check ECR repository name matches exactly
”EOF” during pushNetwork timeout - retry the push

ECS Task Issues

IssueSolution
Task stops immediatelyCheck CloudWatch logs for Java errors
”No space left on device”Container may need more memory
Cannot pull imageEnsure image was pushed successfully to ECR
Port already in useYour app might be trying to use a different port

Terraform Errors

IssueSolution
”Error acquiring state lock”Delete .terraform.lock.hcl and retry
”InvalidParameterException”Check task definition CPU/memory combinations
”AccessDenied”Ensure AWS credentials are current
Resources already existUse different names or terraform destroy first

Networking Issues

IssueSolution
No public IP assignedEnsure “assign_public_ip = true” in Terraform
Connection refusedCheck security group allows port 8080
Connection timeoutVerify task is in RUNNING state
Couldn’t Connect to ServerCheck the IP address by using the manual web pages to view Network Bindings for the running instance

Windows-Specific Issues

  • Terraform init fails: Run as Administrator or check antivirus
  • Script execution blocked: Use terraform output -raw get_public_ip_command and run commands manually
  • Line ending issues: Ensure files use LF, not CRLF

Clean Up Resources

Important: Avoid Charges

Learner Lab has limited credits. Clean up resources when done:

  1. Destroy Terraform resources:

    terraform destroy
# Type 'yes' when prompted

  2. Verify in AWS Console:

    • ECS: No running tasks or services
    • ECR: Can keep repository (minimal cost)
    • CloudWatch: Logs will auto-expire

  3. Manual cleanup (if needed):

    • Stop any running ECS tasks
    • Delete ECS services
    • Delete ECS clusters
    • Delete security groups (except default)

Key Concepts Summary

Amazon ECS Architecture

  • Cluster: Logical grouping of compute resources
  • Task Definition: Blueprint for running containers
  • Task: Running instance of your container
  • Service: Manages desired number of tasks
  • Fargate: Serverless compute engine

Terraform Concepts

  • Providers: Plugins that interact with APIs (AWS)
  • Resources: Infrastructure components to create
  • Variables: Parameterize your configuration
  • State: Tracks what Terraform manages
  • Plan/Apply: Preview and execute changes

Networking in ECS

  • VPC: Virtual network for your AWS resources
  • Subnet: Range of IP addresses in your VPC
  • Security Group: Virtual firewall for your tasks
  • Public IP: Allows internet access to your container

Additional Resources

AWS Documentation

Terraform Resources

Debugging Tools

  • CloudWatch Logs: View container output and errors
  • ECS Console: Visual interface for task management
  • AWS CLI: Scriptable interface for automation

Next Steps

After completing this lab, you’re ready for:

  • Assignment 1: Implement new REST endpoints and deploy
  • Adding load balancers for production traffic
  • Implementing auto-scaling policies
  • Setting up CI/CD pipelines
  • Exploring container orchestration patterns

Remember to turn off all your instances and resources etc in AWS when you finish each day.

Graph View

Backlinks
